LANRIN  in the research and development of advanced sensing devices, specifically Force, Torque, and Pressure Sensors, as well as Load Cells.  we are a worldwide supplier of sensors for such industries as Medical, Aerospace

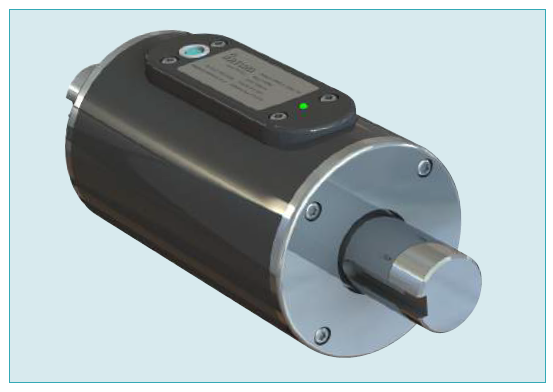

MODEL: L425

MODEL: L425

L425 Torque Sensor Features:

Accuracy: 0.1%

Non-Linearity: 0.1%

Repeatability: 0.05%

Digital Sample Rate: 1 to 4000 samples per second

Serial Torque Outputs: SCADA outputs, including RS485, RS232, Ethernet, Modbus UPD, USB Logging

Analogue Torque Outputs: 4-20mA configured 4-20mA (4-12-20mA): +/-10Vdc, +/-5Vdc, 0-10Vdc or 0-5Vdc at 20 samples per second

Operating Range: -10 to +70˚C

Environmental Protection: IP54 (see our high-speed RS425 Torque Sensor for IP67/68)

Power Supply: 10-24Vdc 250mA


0.00
0.00


L425 Torque Sensor Features:

Accuracy: 0.1%

Non-Linearity: 0.1%

Repeatability: 0.05%

Digital Sample Rate: 1 to 4000 samples per second

Serial Torque Outputs: SCADA outputs, including RS485, RS232, Ethernet, Modbus UPD, USB Logging

Analogue Torque Outputs: 4-20mA configured 4-20mA (4-12-20mA): +/-10Vdc, +/-5Vdc, 0-10Vdc or 0-5Vdc at 20 samples per second

Operating Range: -10 to +70˚C

Environmental Protection: IP54 (see our high-speed RS425 Torque Sensor for IP67/68)

Power Supply: 10-24Vdc 250mA
