MODEL: LSC

MODEL: LSC

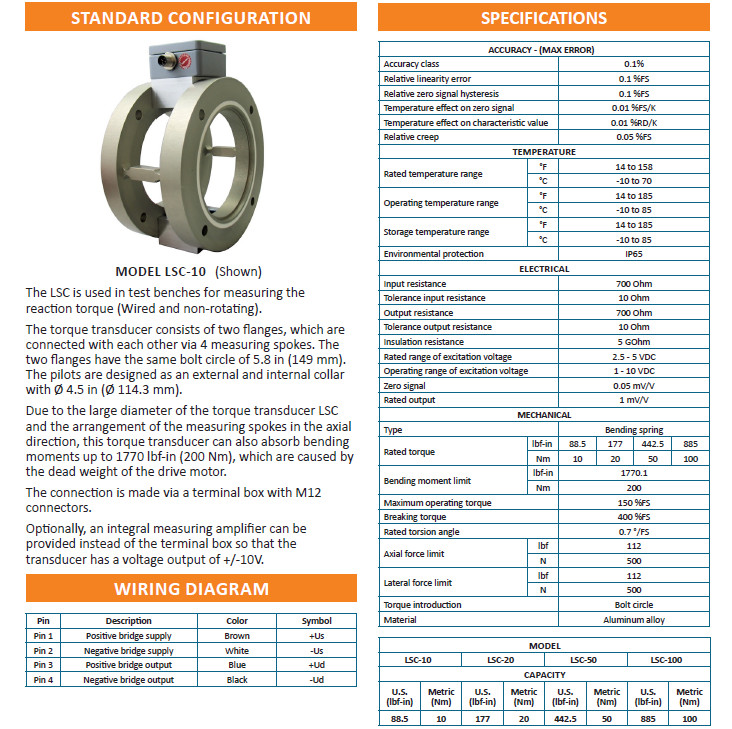

The LSC is used in test benches for measuring the reaction torque (Wired and non-rotating).

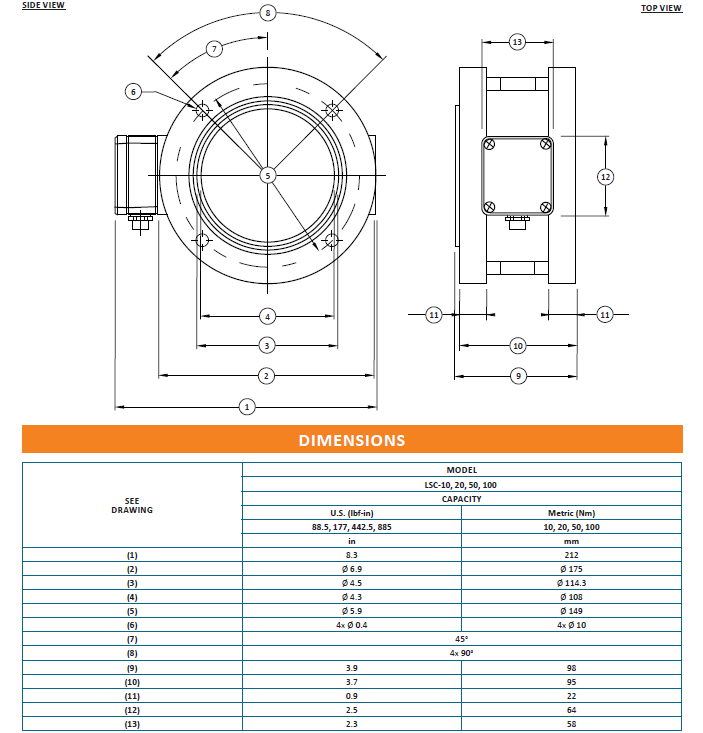

The torque transducer consists of two flanges, which are connected with each other via 4 measuring spokes. The two flanges have the same bolt circle of 5.8 in (149 mm). The pilots are designed as an external and internal collar with Ø 4.5 in (Ø 114.3 mm).

Due to the large diameter of the torque transducer LSC and the arrangement of the measuring spokes in the axial direction, this torque transducer can also absorb bending moments up to 1770 lbf-in (200 Nm), which are caused by the dead weight of the drive motor.


0.00
0.00


The LSC is used in test benches for measuring the reaction torque (Wired and non-rotating).

The torque transducer consists of two flanges, which are connected with each other via 4 measuring spokes. The two flanges have the same bolt circle of 5.8 in (149 mm). The pilots are designed as an external and internal collar with Ø 4.5 in (Ø 114.3 mm).

Due to the large diameter of the torque transducer LSC and the arrangement of the measuring spokes in the axial direction, this torque transducer can also absorb bending moments up to 1770 lbf-in (200 Nm), which are caused by the dead weight of the drive motor.
